ELEVATED
STORAGE TANKS
Standard & Custom
40 m³ standard unit -- in stock or short lead time. Custom sizes for any wellsite or gathering station storage requirement. Gravity discharge. Optional heating. Delivered complete.
Where Elevated Tanks Work -- and Why Height Matters
The elevated storage tank solves a specific operational problem: how to load a road tanker with crude oil or produced water without a pump, without electrical power, and without permanent infrastructure. The answer is height -- raise the tank 2.5-4.5 metres, and the static liquid head plus any available line pressure is enough to drive gravity loading into a tanker positioned beneath the outlet nozzle.
Wellsite Crude Oil Storage & Gravity Loading
At producing wellsites without pipeline connections, crude oil is stored in an elevated tank and periodically loaded into road tankers for transport. The elevated tank provides the gravity head for tanker loading without a pump. For the operator, this eliminates a pump from the wellsite equipment list: no pump to maintain, no motor to power, no seal to replace.
Chemical and Utility Fluid Storage

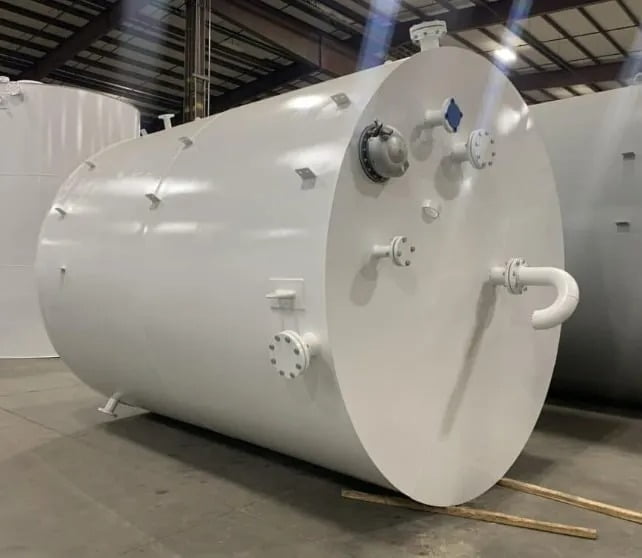

Elevated tanks in smaller sizes (5-20 m³) are used for chemical storage -- demulsifier, scale inhibitor, methanol -- at wellsites and gathering stations. The elevation allows gravity dispensing into chemical injection skid day tanks. Constructed with appropriate internal coating or lining and supplied with a lockable outlet valve.
Produced Water Storage and Removal
Produced water separated from crude oil must be stored before disposal. An elevated tank allows gravity transfer to the disposal truck or gravity injection directly into a disposal well. For high-salinity or H₂S-bearing produced water, internal glass-flake epoxy lining is utilized to account for the corrosive nature of the fluid.
Component of Integrated Wellsite Systems
Elevated tanks are a core component of LINSON OIL's multi-function wellsite storage collector. Operators who have already purchased a multi-function collector and need additional storage capacity can add a standalone elevated tank connected to the collector's existing outlet piping.
View Multi-Function CollectorsWhat Goes Into a Reliable Elevated Tank
Design Considerations That Matter for Field Reliability.
01 Tank Vessel Design
The tank vessel is a horizontal or vertical cylindrical vessel designed for atmospheric or low-pressure service. The standard 40m³ unit uses a horizontal cylindrical vessel -- providing a low centre of gravity, stable structural behaviour, and a short overall unit height. The vessel shell is Q235B or Q345R carbon steel, with wall thickness calculated per GB 50341. For crude oil service, the internal surface is cleaned and coated with solvent-resistant epoxy. For corrosive produced water, an internal glass-flake epoxy lining is standard.
02 Structural Frame Design
The structural steel frame -- four or six legs with cross-bracing -- carries the full weight of the tank plus the maximum liquid load plus the wind load at the installation site. For the standard 40m³ unit, the frame is designed for a specific wind speed zone. Base plates are sized for the bearing capacity of the standard concrete pad foundation; LINSON OIL provides the pad design specification with each unit so the site team can prepare the correct foundation before tank delivery.
03 Elevation and Loading Head
The standard unit elevation (distance from ground to tank base) is 2.5-3.5 m. At 2.5 m elevation with a full tank of crude oil (SG ≈ 0.85), the static head at the ground-level loading outlet is approximately 21 kPa (0.21 bar) -- sufficient for gravity loading. For higher-viscosity crudes or longer loading hose runs, a higher elevation may be specified. LINSON OIL calculates the required elevation based on the crude viscosity, loading hose length, and required loading rate.
04 Breather Valve Sizing
The breather valve (pressure-vacuum relief valve) is sized per API 2000 for the maximum liquid inflow rate and the maximum liquid outflow rate (during tanker loading). Undersized breather valves cause vacuum collapse of the tank roof during rapid drainage -- one of the most common modes of tank damage in field service. LINSON OIL sizes the breather valve as part of the standard design, not as an afterthought.
05 Optional Electric Heating
For high-pour-point crude oils, an electric immersion heater maintains the tank temperature above the pour point during storage. The heating element is sized for the thermal load: heating the daily crude inflow and compensating for heat loss to the design ambient minimum temperature. LINSON OIL always recommends insulation for heated crude storage in cold climates to significantly reduce the heating element size.
Engineering Specifications
Standard 40m³ Unit and Custom Range Parameters.
Standard 40m³ Unit Specifications
| Nominal Volume | 40 m³ |
|---|---|
| Vessel Orientation | Horizontal cylindrical |
| Shell Inside Diameter | 2,200 mm (nominal) |
| Vessel Length | ~11,000 mm (T-T) |
| Shell Material | Q235B carbon steel |
| Design Pressure | Atmospheric (breather valve protected) |
| Design Temperature | -20°C to +60°C |
| Number of Legs | 4 (standard) |
| Frame Height | 2,800 mm (ground to tank base) |
| Overall Unit Height | ~5,500 mm |
| Breather Valve | 2" pressure-vacuum relief; sized per API 2000 |
| Connections | DN80 inlet/outlet, DN50 drain, flanged |
| Surface Treatment | Internal: Sa2.5 + epoxy; External: Sa2.5 + primer + topcoat |
| Delivery | Typically 4-8 weeks |
Custom Size Range
| Nominal Volume | Typical Use |
|---|---|
| 5 - 10 m³ | Chemical storage; small wellsite buffer; day tank |
| 15 - 25 m³ | Small wellsite crude storage; low-rate wells |
| 40 m³ | Standard wellsite crude storage (most common) |
| 50 - 80 m³ | Higher-rate wells; longer tanker visit intervals |
| 100 - 200 m³ | Cluster wellsite; small gathering station |
Standard Supply & Optional Features
Fully equipped for immediate field deployment, with a wide range of operational upgrades.
Standard Supply
- Tank vessel (Q235B)
- Structural steel frame (4-leg)
- External access ladder with safety hoops
- Breather valve (API 2000 sized)
- Flanged nozzles (blanked for transport)
- Float-type level gauge (local visual)
- DN450 Manhole
- Internal/External surface treatment
- Factory water fill test & leak check
- Foundation pad design specification
| Optional Feature | Description |
|---|---|
| Electric heating -- immersion | Ex-proof heater sized per pour point; thermostat with high-temp shutdown |
| Insulation and cladding | 50-100 mm mineral wool; aluminium/steel cladding; reduces heating cost |
| Anti-theft loading valve | Lockable ball valve on loading outlet; padlock provision; tamper-evident seal |
| Level transmitter | 4-20 mA float/pressure transmitter for SCADA remote monitoring |
| High-level alarm / shutdown | Automatic shutdown of separator inlet valve to prevent overflow |
| Produced water lining | Glass-flake epoxy lining for high-salinity or H₂S produced water |
| Metering on outlet | Oval gear or turbine flow meter with totaliser for tanker load recording |
| ASME dual certification | For international / export project requirements |
Standard Products Built to Complex Quality Systems
Manufactured under the same rigorous QA/QC processes as our high-pressure vessels.
Key Certifications
- GB 50341 / GB 150
- ISO 9001:2015 QMS
- Sinopec & CNPC HSE Certified
- CNAS Accredited Laboratory
- ASME / API 650 (Export)
- ISO 14001 / ISO 45001
QA Process -- Standard Unit
Material Verification
Shell plate, structural steel, and fitting materials verified against certificates. Wall thickness measured before fabrication.
Fabrication & NDT
Shell seam visually inspected. Key structural welds checked. RT or UT on shell seam welds available per NDT plan.
Tank Fill Test
Filled with water to design level. Welds inspected for leaks. Breather valve function confirmed. Level gauge calibrated.
Optional Feature Test
Electric heater insulation resistance test; thermostat calibration. Transmitter span/zero calibration. Valve lock confirmed.
The Most Deployed Product in Our Range
40m³ Standard Units -- Multiple Oilfield Operating Areas
Deployed at single-well and small cluster-well production sites across Shandong, Xinjiang, and other producing regions. The standardisation of the 40m³ design reflects the common wellsite storage requirement, and LINSON OIL maintains production capacity for short-lead-time delivery.
Integration with Multi-Function Wellsite Collectors
Supplied as a standalone product using the same vessel and frame design as the storage section of our multi-function wellsite collectors. Ensures seamless aesthetic and functional integration for expanding sites.
Sinopec & CNPC -- HSE Certified Supplier
Standard elevated storage tanks supplied to NOC upstream operations are subject to incoming HSE inspection. LINSON OIL's sustained qualification reflects a flawless delivery record across standard storage equipment categories.
Warranty & Support
Standard: 2 years (vs. Industry 1 year)
Covers weld integrity, coating adhesion, structural frame, and optional equipment. Our 2-year warranty reflects absolute confidence in fabrication quality.
After-Sales Support
- Coating maintenance specs
- Breather valve replacements
- Heating element spares
- In-service structural checklists
Standard 40m³ in Stock.
For the standard 40m³ unit, send us your delivery location and optional features required -- we'll confirm availability and lead time within one business day.
For custom sizes, provide your volume requirement, fluid type, and options. We'll return a specification and schedule within 1-2 business days.
